ASME SECTION VIII FOR AIR-GAS SERVICE


ASME UV   NB   CRN

Series 88 / 89

Multiple purpose safety valves for air / gas protection. Designed for durability, yet an economical choice for safety and relief applications.ASME and National Board certified for Section VIII as well as CRN Certifications.
Choose for a variety of applications where mid-level capacity is required.


Series 88 / 89

Durable and economical choices for safety and relief applications.

Temperatures -60°F (51°C) to 406°F (208°C), low reduced to -320°F (-196°C) with PTFE option, high increased to 425°F (218°C) with stainless option.


Usages:

Over pressure protection, Pressure vessels, Piping systems, Tanks, Compressors, Dryers, Inter- and After-coolers.



Features:

  • Precision lapped metal-to-metal seating
  • Stainless steel springs
  • Ruggedly constructed
  • Closed seal hex cap or lever* option
  • Wide variety of inlet and outlet options
  • Disc-guided seat provides quick, accurate and excellent re-seating


Options:

  • Stainless steel body and disc
  • Chrome plating
  • Viton embedded o-ring at hex cap
  • Packed lift lever
  • Low Lead Configurations
  • Oxygen cleaning
  • Female inlet
  • BSPT and BSPP connections


Cryogenic:

  • Standard with PTFE seating
  • O2 cleaned and bagged

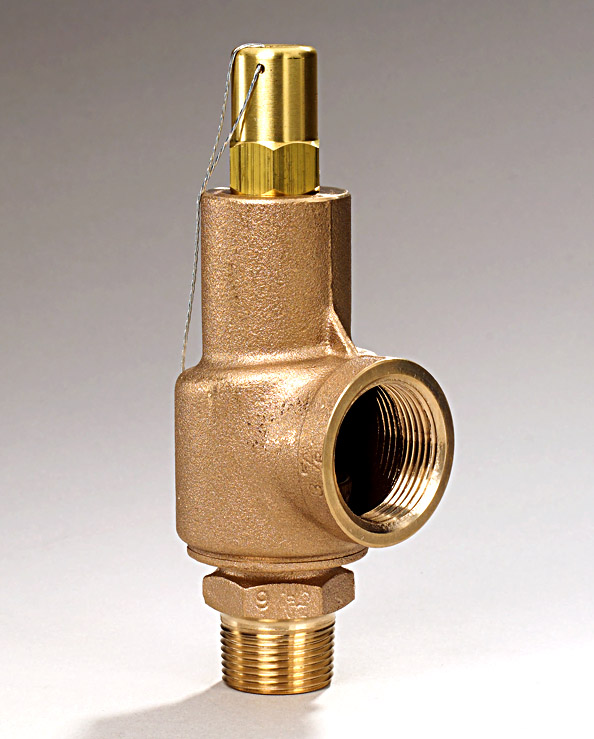

Click on image for larger size
